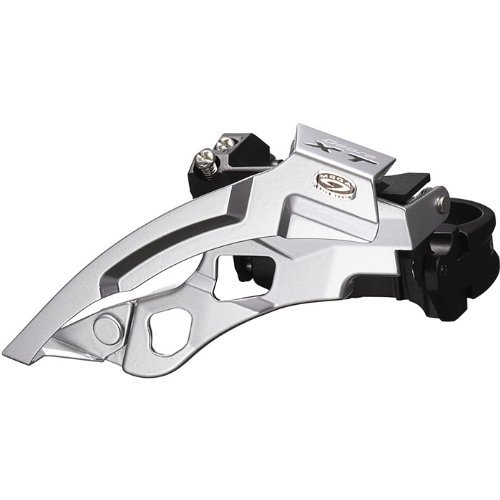

Shimano Deore XT MTB Bike Front Mech Derailleur FDM770

More informations about Shimano Deore XT MTB Bike Front Mech Derailleur FDM770

this product is the best selling Shimano Derailleurs currently. If you're searching for an original Shimano Derailleurs, we suggest this product is the good choice.
Besides of the affordability, Shimano Deore XT MTB Bike Front Mech Derailleur FDM770 is also equipped with many attractive features. This product of course will answer your needs.

ASIN : B001437PTQ
Category: Derailleurs
Brand: Shimano
Rating : 5.0
Reviews : 1

Product description Shimano Deore XT MTB Bike Front Mech Derailleur FDM770

###############################################################################################################################################################################################################################################################

• ###############################################################################################################################################################################################################################################################
• Reinforced light weight chain guide adds rigidity and improved response. Wider pivot link increases torsional rigidity. Easy access angled adjustment screws and clamp bolt.
• Angled inner chain guide tail for increased tyre clearance. Designed with Mega9 compatibility for narrow 9-speed chains.
• 44 to 48 tooth outer ring compatible. Weight: 152 grams for top swing.
• Dual-Pull, Multi-Clamp design takes the guesswork out of choosing a replacement derailleur. This will work with top or bottom routed cables.

Shimano Deore XT MTB Bike Front Mech Derailleur FDM770 Picture gallery:

We have already done the research and spent much of time to givethe most profitable offer for you. If you still unsure, you may see what they think about Shimano Deore XT MTB Bike Front Mech Derailleur FDM770.

Well designed front mech
This is the 9 speed top swing version where the mounting band is below the main body - well below the seat tube bottle mounts on my aging Trek, unlike the equally old XT model this one replaces. This version also supports outer rings up to 48T and is a universal design that not only supports both top & bottom cable routing but the three seat tube diameters with the use of the supplied shims.

You will need to break the chain to fit - the cage is riveted. The two main pivot points are widely seperated, avoiding flex. The top horizontal part of the cage is laser-cut with "XT" - a nice touch.

I found this easy to fit & setup. I would advise opening out the "LOW" adjustment screw as much as possible, screw in the cable adjuster then pull the cable as tight as possible before tightening the cable clamp screw. doing so will remove most of the slack without having to rotate the cable adjuster too far - by the time you you adjust the "LOW" screw to its optimum position,...
